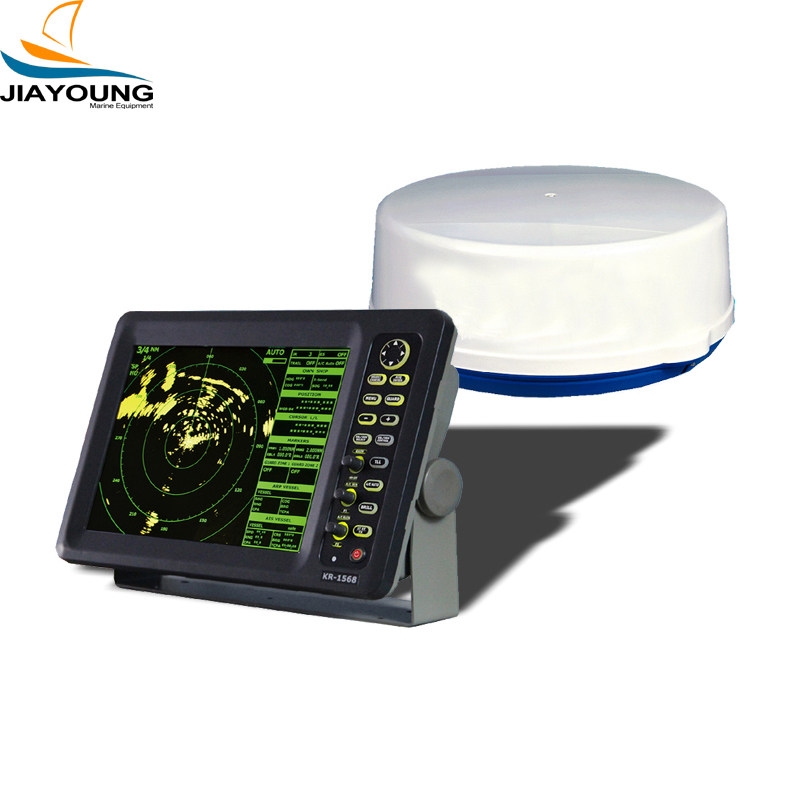

12 Inches 36NM Color LCD Marine Radar

12 Inches 36NM Color LCD Marine Radar

Short Description:

Customizable Data Field, more flexible data display. System Software can be upgraded via USB. AIS display function. Multiple-Color selection for target and background. Rugged die-cast, waterproof housing. “Target Tracking” (TT) function, can track and trace up to 20 targets. User-programmable function keys. Automatic optimization of radar picture. Newly enhanced performance. Head-up, Course-up and North-up representation mode. Economy Mode, Guard Zone Alarm and Watch Mode. ANTENNA RADIATOR...


  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 1000 Piece/Pieces per Month
  • Port: China Port
  • Payment Terms: L/C,TT,Western Union, Paypal
  • Product Detail

    Product Tags

    Customizable Data Field, more flexible data display.

    System Software can be upgraded via USB.

    AIS display function.

    Multiple-Color selection for target and background.

    Rugged die-cast, waterproof housing.

    “Target Tracking” (TT) function, can track and trace up to 20 targets.

    User-programmable function keys.

    Automatic optimization of radar picture.

    Newly enhanced performance.

    Head-up, Course-up and North-up representation mode.

    Economy Mode, Guard Zone Alarm and Watch Mode.

    ANTENNA RADIATOR
    Type KR-1238: 55cm hybrid array
    Length and Rotate speed KR-1238: Radome 60cm (KRA-1004) 24RPM
    Wind load Relative wind 100 knots
    Beam width KRA-1004: Hor: 4″ Vert: 25″
    RF TRANSCEIVER
    Frequency 9410 +/-30MHz (X-band)
    Pulse length PRR 0.08 µ s/2100 Hz(0.125, 0.25, 0.5, 0.75, 1, 1.5* nm)0.3µ s/1200 Hz(1.5*, 2, 3 nm)

    0.8 µ s/600 Hz(3*, 4, 6, 8, 12, 24, 36, 48**, 64**nm)

    * Pulse length & PRR for 1.5 and 3nm ranges can be select in menu** KR-1268

    Peak Output Power 4KW nominal
    Mixer and Local Oscillator Microwave Inter grated Circuit
    IF 60MHz Bandwidth: 25MHz (0.08/0.3 µ s), 3MHz (0.8 µ s)
    Noise Figure 10dB nominal
    ENVIRONMENT Temperature:
    Display unit: -15 to +55 C (Display Unit)
    Antenna unit: -25 to +70 C (Antenna Unit)
    POWER SUPPLY 13.8 VDC, 24 VDC, 36 VDC; 60W (30W in economy mode)
    DISPLAY UNIT
    Type 12″ LED backlight, 32-bit TFT Color LCD Display
    1024(V) x 768(H) dots
    Display Modes Head-up, Course-up*, North-up*, True Motion**
    * Heading input required
    ** Heading and speed inputs required
    Range Scale (nm) Range: 0.125, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 36, 48**, 64**, 72**
    Ring:0.0625,0.125,0.125,0.25,0.25,0.5,0.5,1,1,2,2,3,4,6,12
    Echo Trail Interval: 15s, 30s, 1min, 3min, 6min, 15min, 30min or continuous
    Interface(NMEA 0183 format) any talker (menu selection)
    Input:
    $–APB,$–BWC,$–BWR,$–DBK,$–DBS,$–DBT,$–DPT,
    $–GGA,$–GLC,$–GLL,$–GTD,$–HDG,$–HDW,$–HDT,
    $–MDA,$–MTW,$–RMA,$–RMB,$–RMC,$–VTG, $–VHW, $–XTE
    Output:
    $–OSD,$–RSD,$–TLB,$–TLL,$–TTD,$–TTM
    AIS Display Acquisition : AIS vessels or ATON
    Tracking : Auto
    Display : Vessel Name, MMSI, Call sign, Range/Bearing, L/L
    Speed/Course, ROT, CPA/TCPA
    (AIS data input required)
    Target Tracking Function Acquisition : 20 manual/10 auto + 10 manual
    Tracking : Auto
    Display : Speed, Course, Range/Bearing and CPA/TCPA
    EQUIPMENT LIST
    Display unit (KRD-1004): 1 unitRadome Antenna unit:

    KR-1238: KRA-1004 1 unit

    Antenna Cable (KRC-005-10/15/20):

    10/15/20/30m (Specify when ordering)

    Power Cable (KRP-002-0): 3m

    Standard Spare Parts and installation materials: 1 set
