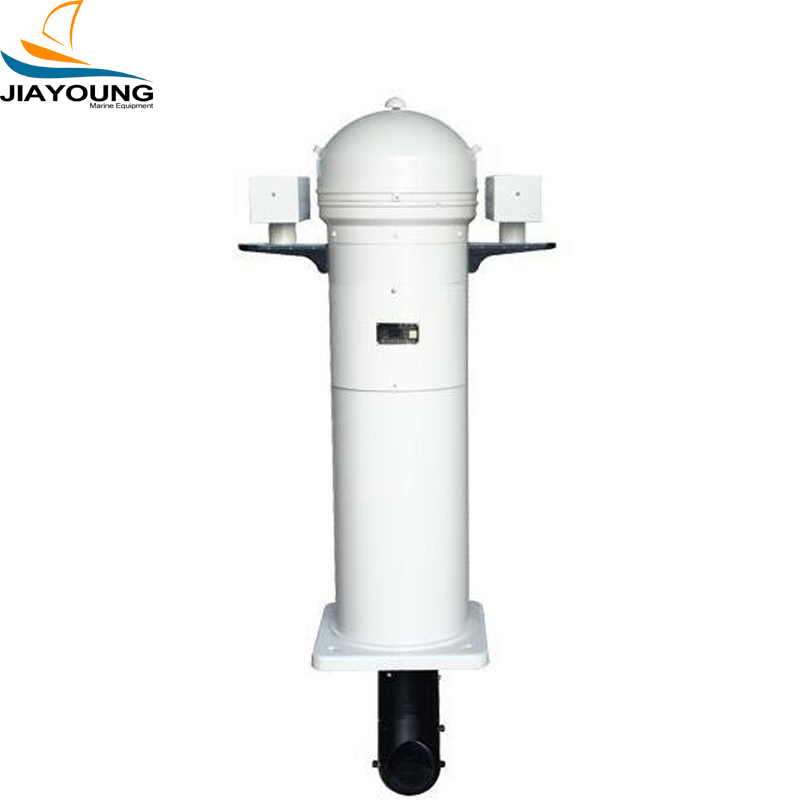

Type CGT-165 Marine Magnetic Compass

Type CGT-165 Marine Magnetic Compass

Short Description:

CGT-165 Projection Magnetic Compass is a sort of vertical liquid magnetic compass with excellent performance and reliable working. It is designed and manufactured in accordance with the national standard GB/T 14108-2011 (General Technical Terms of Marine Magnetic Compass Class A) and completely accord with the demand and standard of the relevant navigation equipment regulated by ISO449 and IMO. The product has the characteristics of high precision and steady performance and can be used for lo...


  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 1000 Piece/Pieces per Month
  • Port: China Port
  • Payment Terms: L/C,TT,Western Union, Paypal
  • Product Detail

    Product Tags

    CGT-165 Projection Magnetic Compass is a sort of vertical liquid magnetic compass with excellent performance and reliable working.

    It is designed and manufactured in accordance with the national standard GB/T 14108-2011 (General Technical Terms of Marine Magnetic Compass Class A)

    and completely accord with the demand and standard of the relevant navigation equipment regulated by ISO449 and IMO.

    The product has the characteristics of high precision and steady performance and can be used for long time under inclement weather at ship sailing. It has the following characteristics:

    1.It is the standard magnetic compass as well as concurrently acting as steering magnetic compass and overcome the difficulties that the wheelhouse is lack of area for mounting and it is difficult correcting in the steel cabin. It is useful for the arrangement of console.

    2.The projective tube is changed directly inserting in the bottom of the compass from the wheelhouse . The advantages of it are simple installation, convenient maintenance and may disassemble the clean imaging glass at any moment.



    Main technical parameters

    Project

    Data

    Dial Diameter

    Φ165mm

    Dial graduation

    0°~360° 1°for each grid

    Using temperature

    -25℃~+60℃

    Indicating deviation(H=35μT,T=20±3℃)

    ≤0.5°

    Half period(H=35μT,T=20±3℃)

    ≥8.62 S

    Friction deviation(H=35μT,T=20±3℃)

    ≤0.09°

    Main semicircle self heterodyne correcting energy

    1°~45°

    Secondary semicircle self heterodyne correcting energy

    1°~6°(magnetic inclination Q=45°)

    Quadrant self heterodyne correcting energy

    0.5°~10°

    Inclining self heterodyne correcting energy

    -75~+75μT

    Lens barrel flexing range

    ±10mm

    Dial image expanding rate

    ≈2times(original dial graduation)

    Lighting power supply

    AC 220V,DC 24V

    Outline Dimension

    20X430X1300mm(Excluding the length of lens barrel)

    Diameter of mounting holes

    Pitchrow 420 ApertureΦ16

    weight

    70kg
