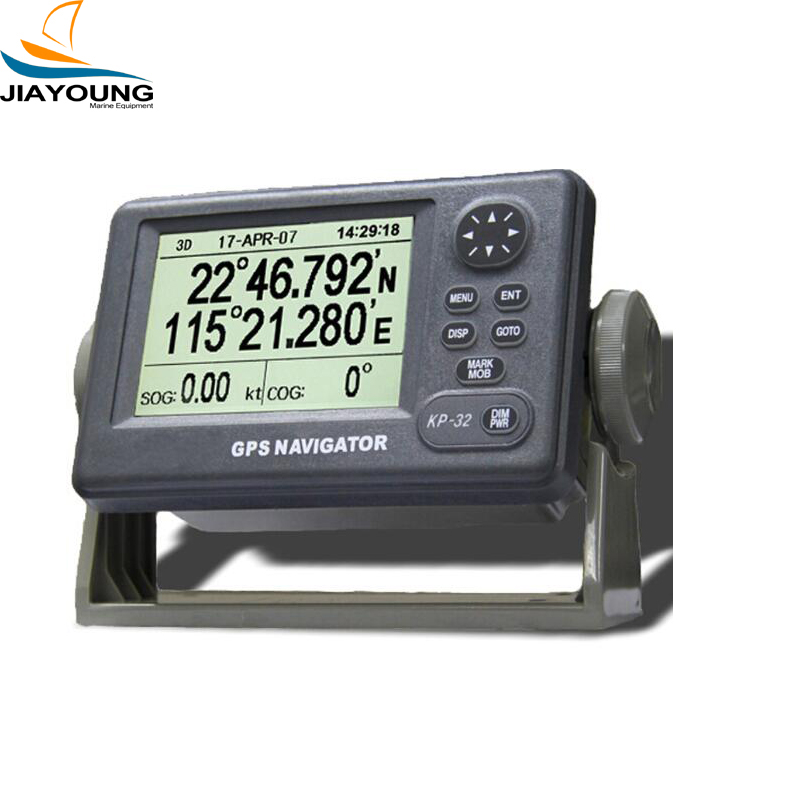

Marine GPS Navigator KP-32
FEATURE: 1) Improved accuracy with built-in SBAS receiver 2) 4.5″ Silver Bright LCD display 3) Multiple display modes to suit a varity of navigational requirements 4) Up to 999 waypoint, 50 routes and 2, 500 track points 5) One-touch waypoint entry 6) Customizable Nav Data screens 7) Track back feature stores waypoints at user defined intervals for early trace-back cruise 8) Waypoint & Route upload/download through RS-232C port DESCRIPTION: The KP-32 is an advanced GPS navigator wit...
1) Improved accuracy with built-in SBAS receiver
2) 4.5″ Silver Bright LCD display
3) Multiple display modes to suit a varity of navigational requirements
4) Up to 999 waypoint, 50 routes and 2, 500 track points
5) One-touch waypoint entry
6) Customizable Nav Data screens
7) Track back feature stores waypoints at user defined intervals for early trace-back cruise
8) Waypoint & Route upload/download through RS-232C port
The KP-32 is an advanced GPS navigator with a SBAS receiver designed for coastal ships, fishing boats and pleasure craft. The powerful processor performs high-speed processing of position fixing and augmentation using SBAS correction. It comes with an easy to use track plotter which stores up to 2, 500 track points.
This compact and cost-effective unit offers extremely accurate position fixes. It is accurate to 15 meters, and with SBAS mode activated, it’s accurate to within 3 meters.
The display modes include Plotter, Nav Data, Steering, Highway, Speedometer and two customizable modes. The Steering mode provides an intuitive indication of course to steer and crosstrack-error (XTE). The Highway mode is useful when you are heading for your fishing ground or following a series of waypoints along a planned route.
The user-friendly design permits easy and straightforward operation with minimum key strokes. The system has various alarm functions to warn of arrival to or departure from a predefined area (arrival/anchor watch), XTE exceeding a preset limit, Alarm Clock and more.
SBAS, Satellite-Based Augmentation Systems
An SBAS provider furnishes GPS signal corrections to SBAS users, for even better position accuracy, typically better than three meters. WAAS, available in North America, MSAS (Multi-Functional Satellite Augmentation System) for Japan and EGNOS (Euro Geostationary Navigation Overlay Service) for Europe, those are the provider in the worldwide SBAS (Satellite Based Augmentation System) navigation system. All providers will be compatible with one another, thus providing seamless position fixes to SBAS users. Major contributors of an error in a single frequency GPS system are a receiver clock drift and signal delays by refraction. The SBAS reference stations on the earth monitor the GPS constellation and route GPS error data to the
SBAS satellite via the master earth station. The Inmarsat or communication satellite broadcasts the differential corrections to users.
1) Receiver Type: GPS: Twelve discrete channels, C/A code, all-in-view. SBAS receiver.
2) Receiver Frequency: L1 (1575.42 MHz)
3) Time to First Fix: 15 second average (Hot start)
4) Tracking Velocity: 999 Knots
5) Geodetic System: WGS-84
GPS: 15m (95%)
SBAS: 3m (95%)
4.5″diagonal 95(W) x 63(H) mm LCD, 240 x 160 pixels
4. Display Modes
Plotter, Highway, Steering, Speedometer, Nav Date and 2 pages Customizable Display
5. Memory Capacity
2, 500 ship’s track points
999 waypoints with comments
50 routes, 30 waypoint / route
Arrival, Anchor watch, XTE, Speed, Time, Trip, Odometer
English, Spanish, French, German, Dutch, Italian, Portuguese, Vietnamese, Indonesian, Chinese, Thai
Output (NMEA0183 ver 2.0)
AAM, APB, BOD, BWC, GGA, GLL, RMB, RMC, VTG, XTE, ZDA
9. Environment Temperature
Display unit: -15 to +55 temp.
Antenna unit: -25 to + 70 temp.
Display unit: IPX5
Antenna unit: IPX6
11. Power supply
12 ~ 24 VDC, 240-120 mA
12. Equipment List
1) Display unit accommodating SBAS receiver 1 unit
2) Antenna unit KA-07 with 10 m cable 1 set
3) Installation materials and spare parts 1 set
