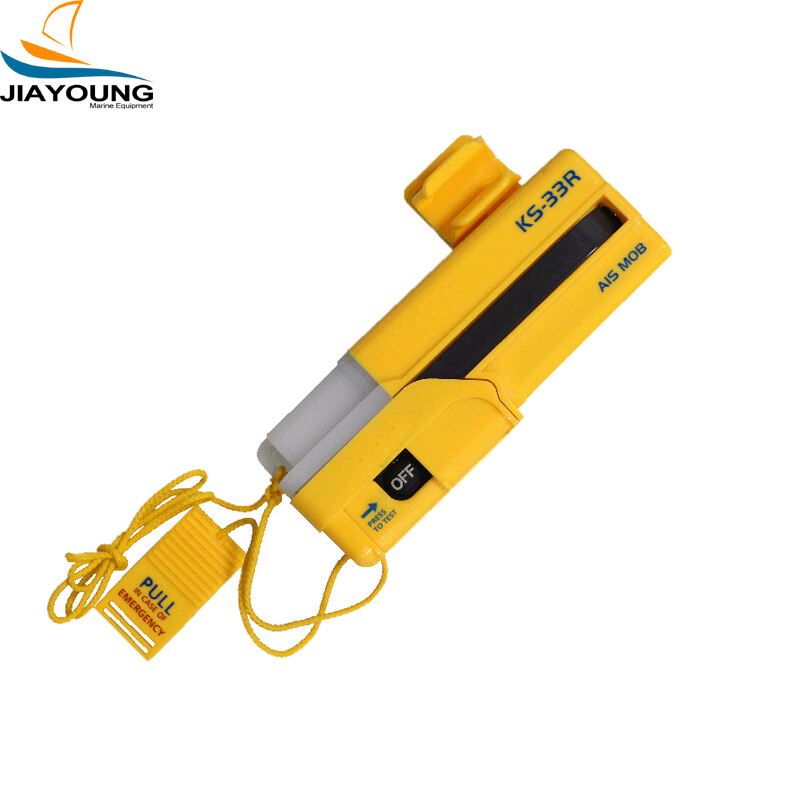

Boat AIS Mob
Short Description:
Feature: 1) transmits GPS target tracking information over AIS. 2) compatible with plotters and onboard navigation systems to assist fast location and retrieval. small and light weight for mounting on life jacket. 3) unique serialized ID. 4) LED flashing indicator. 5) Buzzer. 6) minimum 24 hour continuous operation. 7) 7-year battery life Specification: Standards: IEC61097-14,60945(environmental/EMC) 61108 Part 1,ITU-R M.1371 Sealing depth: Immersion to 5m(16.4ft) Operating temperature:-20 +5...
Product Detail
Product Tags
Feature:
1) transmits GPS target tracking information over AIS.
2) compatible with plotters and onboard navigation systems to assist fast location and retrieval.
small and light weight for mounting on life jacket.
3) unique serialized ID.
4) LED flashing indicator.
5) Buzzer.
6) minimum 24 hour continuous operation.
7) 7-year battery life
Specification:
Standards: IEC61097-14,60945(environmental/EMC)
61108 Part 1,ITU-R M.1371
Sealing depth: Immersion to 5m(16.4ft)
Operating temperature:-20 +50 C(-4 to +131 F)
Storage temperature: -30 to +70 C(-22 to + 158F)
Battery Type: Lithium Manganese
Transmit duration:24 hours
Battery life(Storage): 7 years
Frequency: 161.975 & 162.025 MHZ
Power: 2W nominal
AIS Meaasages Transmitted: Message 1(UID,GPS Position,SOG,COG,UTC)
Message14(MOB ACTIVE or MOB TEST)
First Transmission: After 15 seconds(No GPS)
Range: 4nm typical,
With AIS receiver antenna > 5m above sea level
Unique ID Number: Factory Programmed
GPS Type: 50 Channel,ceramic patch antenna
GPS Position Update: Every minute
Size(D*W*L):24*50*130mm (0.93*1.96*5.08in)
Weight: 120g(4.23oz)
