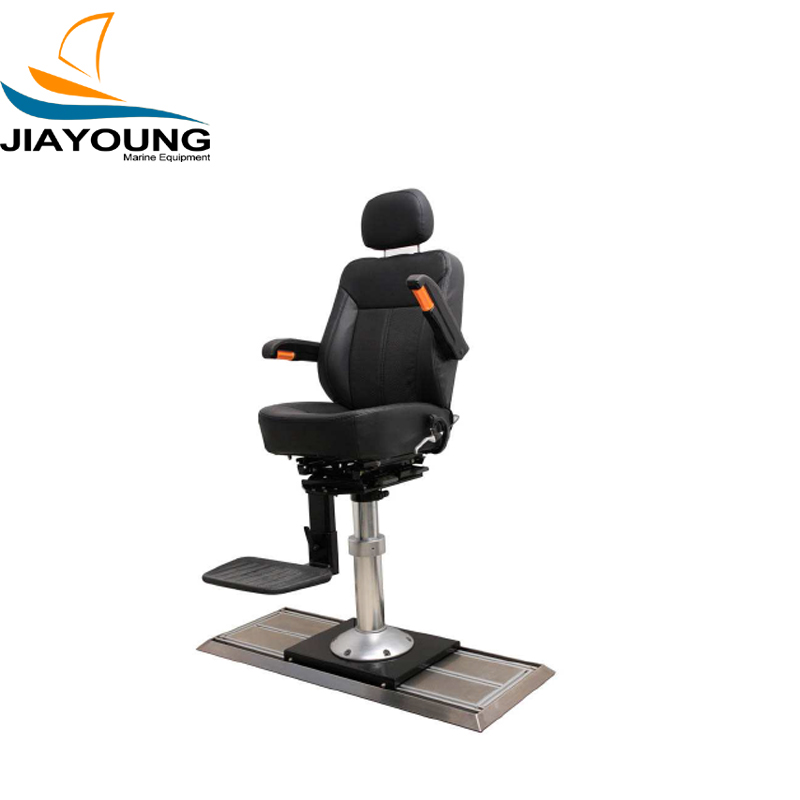

Marine Rail Type Pilot Chair With Aluminium Alloy Column

Function:

1.Ergonomic design;
2. Seat can move in high strength double-slide
rail;
3.Adjustable backrest and headrest;
4.Seat height may be angle adjusted;
5.Seats can be moved back and forth;
6.Folding / angle-adjustable comfortable seat
armrest;
7.Seat can rotated 360 degrees, multi-point
positioning;
8.Foot pedal height adjustable / folding;
9.Column can be vertically lifting;

Material ：

1.Slide rail and positioning base uses the high
strength aluminum alloy, inside and outside decorative mosaic
made of stainless steel;2.Lifting column with aluminum alloy、
steel、stainless steel synthesis;3.The seat lifting and tilting, move
back and forth, back angle adjusting are used in steel structure;4.
The seat back and the seat cushion adopts the steel inner core
and PU cold foam forming disposable sponge synthesis,
outsourcing leather or cloth;5.Pedal steel plate inner core and
environmentally friendly rubber synthetic;6. Pneumatic lifting core
components pneumatic bar the use of German imports of
Stabilus;

Function data：

1.Upper part of the seat can be moved back
and forth of120mm,height adjustment 60mm, seat inclination
angle range of ±12°;2. Seat backrest with adjustable angle of
85°-150°, the headrest adjusted up and down 50mm, handrest
multi-point positioning control;3. The seat of pneumatic lifting
regulating range 0-150mm；4.The seat can rotate 360°and
locked ,4-point positioning control; 5.Seat rail slide in 0-6000mm
mobile,500mm rail width and depth 28mm 6. Seat pedal can
rotate 90° and regression, upper and lower position adjusting
range of 0-50mm;7.Seat can bear more than 150FT.LB torsion,
reached AD grade standard;
