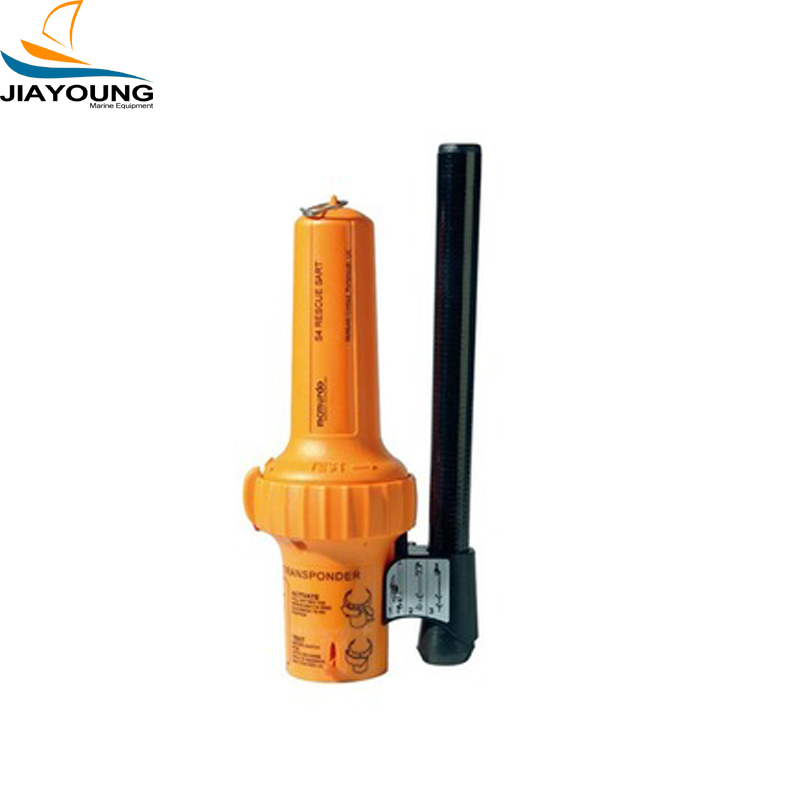

Marine Radar Sart

Marine Radar Sart

Short Description:

Radar SART is a device enforced to be equipped on the vessel by IMO. The function complies with GMDSS requirement and relevant international standards , owing whole independent intellectual property . Main Parameters : Operation Frequency : 9200 MHZ ~ 9500MHZ Polarization Mode : Horizontal Polarization Antenna : Horizontal beam ( omni-direction )  Less than +/2 dB ; Vertical beam : +/- 12.5 dB Transmitter : scanning speed ( Right way side- rising ) : 7.5 +/- 1 us ; Reverse recovering : 0.4 +...


  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 1000 Piece/Pieces per Month
  • Port: China Port
  • Payment Terms: L/C,TT,Western Union, Paypal
  • Product Detail

    Product Tags

    Radar SART is a device enforced to be equipped on the vessel by IMO. The function complies with GMDSS requirement and relevant international standards , owing whole independent intellectual property .

    Main Parameters :

    Operation Frequency : 9200 MHZ ~ 9500MHZ

    Polarization Mode : Horizontal Polarization

    Antenna : Horizontal beam ( omni-direction )  Less than +/2 dB ; Vertical beam : +/- 12.5 dB

    Transmitter :

    scanning speed ( Right way side- rising ) : 7.5 +/- 1 us ;

    Reverse recovering : 0.4 +/- 0.1 us

    Radiation power : >= 27dBm

    Response delay : <= 0.5us

    Receiver :

    Effective sensitivity : <= 52dBm

    Recovering time : <= 10us

    Operation Temperature : -20 degree ~ + 55 degree .

    Battery can work 180 hours after take out from the boat.

    Standard : IMO Standard , IEC Standard
