DJ Rudder angle indicator

DJ Rudder angle indicator

Short Description:

The Rudder Angle Indicator is the necessary equipment that is used in various vessels to navigate on the sea. Its function is to transmit the rudder angle information in the sailing to the driving place. This digital Rudder Angle Indicator (single face or three faces) has the performances of accuracy indication, no any working noise, direct and clear display (the rudder angle is displayed by the digit display element, piloting lamps indicate the relevant angle scope and the angle direction), ...


  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 1000 Piece/Pieces per Month
  • Port: China Port
  • Payment Terms: L/C,TT,Western Union, Paypal
  • Product Detail

    Product Tags

    The Rudder Angle Indicator is the necessary equipment that is used in various vessels to navigate on the sea.

    Its function is to transmit the rudder angle information in the sailing to the driving place.

    This digital Rudder Angle Indicator (single face or three faces) has the performances of accuracy indication,

    no any working noise, direct and clear display (the rudder angle is displayed by the digit display element,

    piloting lamps indicate the relevant angle scope and the angle direction), small volume and light weight, etc.

    It also can be connected with the remote computer to sampling the signal and process through the interface RS-485.

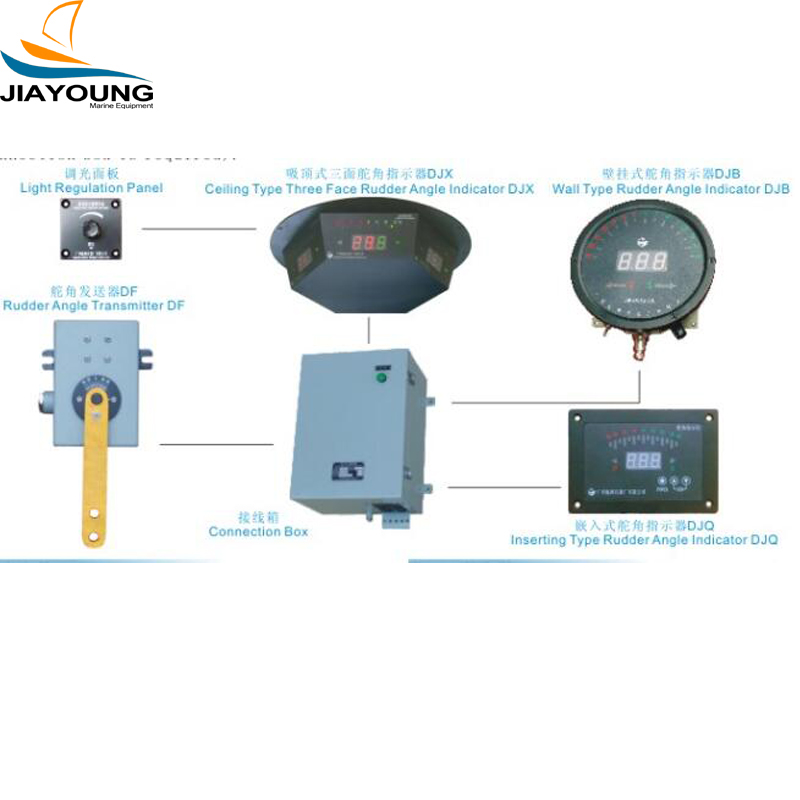

    And it can be connected to several displays (the connection box is required).
    Technical Specifications
    Power: DC24V
    Normal display angle scope: left 0~35°right 0~35°
    Display mode: digital display with scale indication
    Rudder accuracy display: ±0.5°
    Equipment I/O interface: RS-485
    IP grade: Rudder transmitter IP44
    Receiver Ip22
    Using environment

    Sway and incline:
    Transverse sway: ±22.5o, longitudinal sway: ±10o
    Transverse incline: ±22.5o, longitudinal incline: ±10o
    Environmental temperature: 0oC~+45oC
    Air relative humidity: ≤95%
