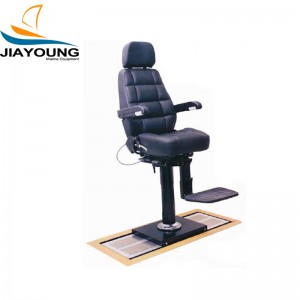

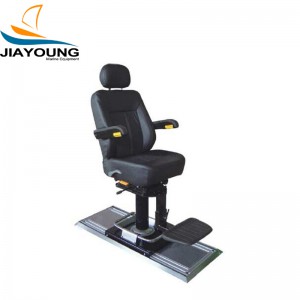

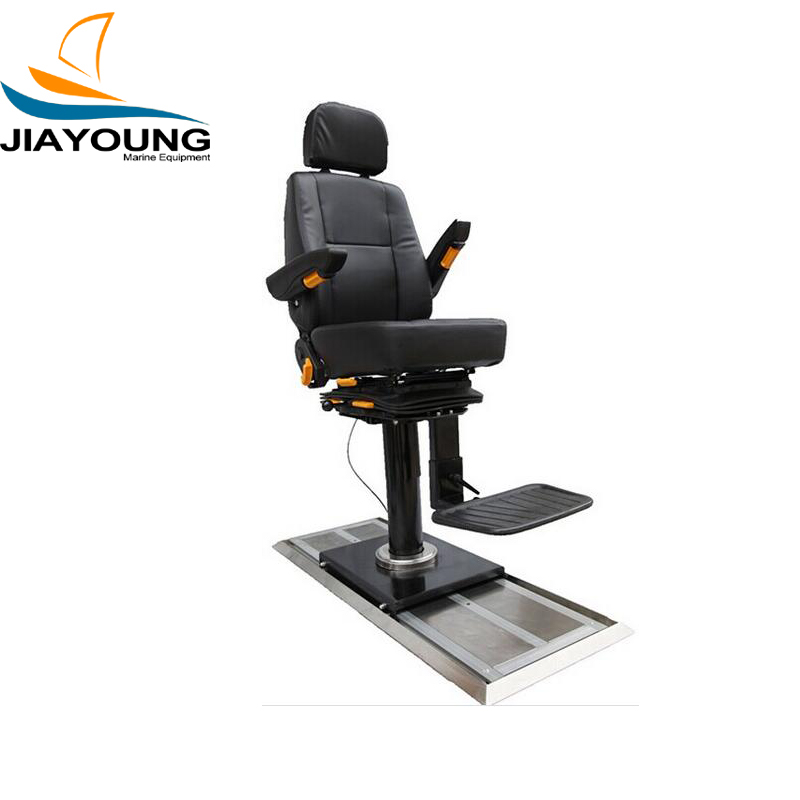

Marine Rail Type Gas Lift Pilot Chair

Function:
1.Ergonomic design;
2. Seat can move in high strength double-slide
rail;
3.Adjustable backrest and headrest;
4.Seat height may be angle adjusted;
5.Seats can be moved back and forth;
6.Folding / angle-adjustable comfortable seat
armrest;
7.Seat can rotated 360 degrees, multi-point
positioning;
8.Foot pedal height adjustable / folding;
9.Column can be vertically lifting;

Material ：

1.Slide rail and positioning base uses the high
strength aluminum alloy, inside and outside decorative mosaic
made of stainless steel;

2.lifting column with steel、stainless steel
synthesis;

3.The seat lifting and tilting, move back and forth, back
angle adjusting are used in steel structure;

4. The seat back and
the seat cushion adopts the steel inner core and PU cold foam
forming disposable sponge synthesis, outsourcing leather or
cloth;

5.Pedal steel plate inner core and environmentally friendly
rubber synthetic;

6. Pneumatic lifting core components pneumatic
bar the use of German imports of Stabilus.

Function data：

1.Upper part of the seat can be moved back
and forth of120mm,height adjustment 60mm, seat inclination
angle range of ±12°;

2. Seat backrest with adjustable angle of
85°-150°, the headrest adjusted up and down 50mm, handrest
multi-point positioning control;

3. The seat of pneumatic lifting
regulating range 0-150mm；

4.The seat can rotate 360°and
locked ,4-point positioning control;

5.Seat rail slide in 0-6000mm
mobile,500mm rail width and depth 28mm

6. Seat pedal can
rotate 90° and regression, upper and lower position adjusting
range of 0-50mm;7.Seat can bear more than 150FT.LB torsion,
reached AD grade standard;
