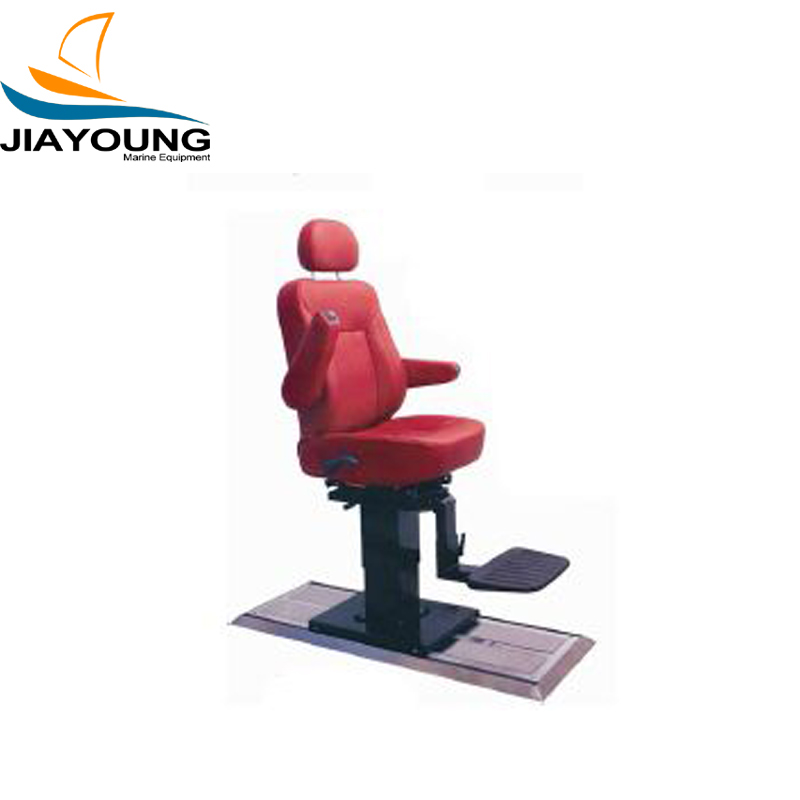

Marine Pilot Chair With Square Steel Column

Marine Pilot Chair With Square Steel Column

Short Description:

Function: 1.Ergonomic design; 2. Seat can move in high strength double-slide rail; 3.Adjustable backrest and headrest; 4.Seat height may be angle adjusted; 5.Seats can be moved back and forth; 6.Folding / angle-adjustable comfortable seat armrest; 7.Seat can rotated 360 degrees, multi-point positioning; 8.Foot pedal height adjustable / folding; 9.Column can be vertically lifting; Material : 1.Slide rail and positioning base uses the high strength aluminum alloy, inside and outside decorativ...


  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 1000 Piece/Pieces per Month
  • Port: China Port
  • Payment Terms: L/C,TT,Western Union, Paypal
  • Product Detail

    Product Tags

    Function:
    1.Ergonomic design;
    2. Seat can move in high strength double-slide
    rail;
    3.Adjustable backrest and headrest;
    4.Seat height may be angle adjusted;
    5.Seats can be moved back and forth;
    6.Folding / angle-adjustable comfortable seat
    armrest;
    7.Seat can rotated 360 degrees, multi-point
    positioning;
    8.Foot pedal height adjustable / folding;
    9.Column can be vertically lifting;

    Material :

    1.Slide rail and positioning base uses the high
    strength aluminum alloy, inside and outside decorative mosaic
    made of stainless steel;2.lifting column with steel、stainless steel
    synthesis;3.The seat lifting and tilting, move back and forth, back
    angle adjusting are used in steel structure;4. The seat back and
    the seat cushion adopts the steel inner core and PU cold foam
    forming disposable sponge synthesis, outsourcing leather or
    cloth;5.Pedal steel plate inner core and environmentally friendly
    rubber synthetic;6. Pneumatic lifting core components pneumatic
    bar the use of German imports of Stabilus;

    Function data:

    1.Upper part of the seat can be moved back
    and forth of120mm,height adjustment 60mm, seat inclination
    angle range of ±12°;2. Seat backrest with adjustable angle of
    85°-150°, the headrest adjusted up and down 50mm, handrest
    multi-point positioning control;3. The seat of pneumatic lifting
    regulating range 0-150mm;4.The seat can rotate 360°and
    locked ,4-point positioning control; 5.Seat rail slide in 0-6000mm
    mobile,500mm rail width and depth 28mm 6. Seat pedal can
    rotate 90° and regression, upper and lower position adjusting
    range of 0-50mm;7.Seat can bear more than 150FT.LB torsion,
    reached AD grade standard;
