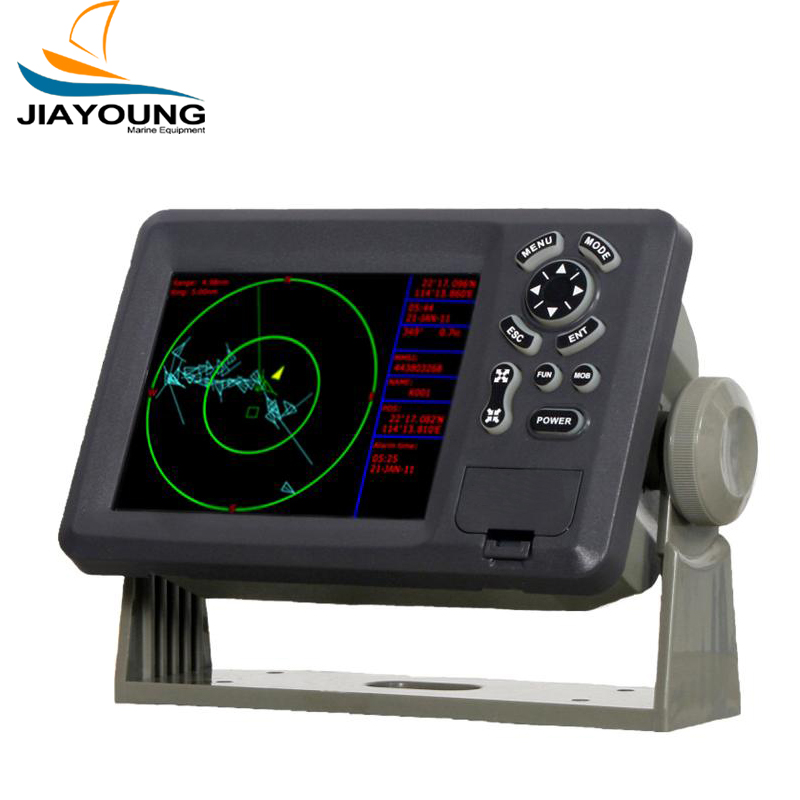

Marine 5.7 Inches GPS AIS Chart Plotter

Marine 5.7 Inches GPS AIS Chart Plotter

Short Description:

Built-in Automatic Identification System (AIS) Class B Transponder High resolution TFT day-view LCD display SD-cards slot for C-Map MAX and user data C-Map MAX and K-Chart Selectable Tide table and Celestial display Versatile display mode include Plotter Screen Nav.Data Satellite Information AIS Display Compass Screen GOTO track navigation Map orientation select Proximity waypoints alarms Perspective View Palette Normal Daylight – exposed to sunlight Night – in dark environment NOAA- pap...


  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 1000 Piece/Pieces per Month
  • Port: China Port
  • Payment Terms: L/C,TT,Western Union, Paypal
  • Product Detail

    Product Tags

    1. Built-in Automatic Identification System (AIS) Class B Transponder
    2. High resolution TFT day-view LCD display
    3. SD-cards slot for C-Map MAX and user data
    4. C-Map MAX and K-Chart Selectable
    5. Tide table and Celestial display
    6. Versatile display mode include
      • Plotter Screen
      • Nav.Data
      • Satellite Information
      • AIS Display
      • Compass Screen
    7. GOTO track navigation
    8. Map orientation select
    9. Proximity waypoints alarms
    10. Perspective View
    11. Palette
      • Normal
      • Daylight – exposed to sunlight
      • Night – in dark environment
      • NOAA- paper chart color
    12. Wind speed and direction display by optional sensor input
    13. AIS guard zone with CPA and TCPA alarm
      PLOTTER CHARACTERISTICS

      Waypoints/icons 15,000 waypoints with name, symbol, 10 proximity waypoint
      Routes waypoint up to 200 points each, plus MOB and Track Navigation orGoto   Track modes
      Tracks 30,000 point automatic track log; 15 saved track (up to 2000 trackpoints each) let you retrace your path in both directions
      Alarms XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time,AIS alarm.
      Pallete Normal,Daylight exposed to sunlight,Night in dark environment,NOAA paperchart colors
      Tides Tide data
      Projection Mercator projection
      Position format Latitude/Longitude
      Basemap Built-in Onwa K-Chart
      External Map SD Cards slot for C-Map MAX
      User data storage Internal backup of user settings, or external SD-card
      Plot Interval 1s to 99h or 0.01 nm to 9.99nm
      Plotting scales 0.01nm to 1,000nm
      Nav Data Inputs:
      $–DBT, $–DPT, $–GGA, $–GLL,$–GSA, $–GSV,
      $–HDG,$–HDM,$–HDT,$–MTW, $–RMB,$–RMC,
      $–VTG, $–ZDA, $–VWR,$–VWT,$–MWD, $–VPW
      Outputs:
      $–AAM, $–APB, $–BOD,$–BWC,$–GGA, $–GLL,
      $–RMB,$–RMC,$–VTG, $–XTE, $–ZDA
      Outputs for autopilot:
      $–AAM, $–APB, $–BOD,$–VTG
      Perspective View On/off
      POWER SUPPLY 10.5 to 35VDC, current drain <500mA at 12V
      PHYSICAL
      Size 228mm(H)X138mm(W)X79mm(D)
      Weight 0.9kg
      Display 5.6-inches Color TFT day-view LCD 640 X 480 pixels
       Waterproofing Display unit: IPX5,Antenna unit: IPX6
      Temperature range Display unit: -15℃ to +55℃,Antenna unit: -25℃ to +70℃
      GPS RECEIVER CHARACTERISTICS
      Receiver 50 parallel channel GPS receiver continuously Tracks and uses upto 50,satellites to compute and update your position
       Acquisition times Cold start: 27 seconds average,Warm start: 27 seconds average,Hot start: 1 seconds average
      Update rate 1/second,continuous
      Accuracy Position: 2.5 meters(95%) without S/A,Velocity: 0.1 Meter/secwithout S/A,Time: ±100ns synchronized to GPS time
      Dynamics Altitude: 50,000m Max,Velocity: 500 m/s,Acceleration: 4g Max
      Datum WGS 84 & Others
      Interfaces NMEA 0183 input and output,RS232 and RS422 output

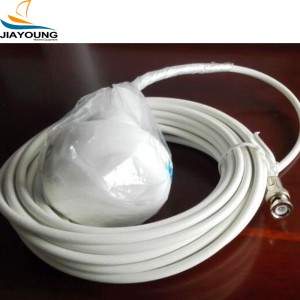

      Antenna KA-07
      EQUIPMENT LIST
      Standard Display unit,Antenna unit with 10m cable,Operator manual,Installation materials and standard spare parts
      AIS CHARACTERISTICS
      Transmitter x 1 (For KP-6299A ONLY)
      Receiver x 2 (one time shared between AIS/DSC)
      Frequency 156.025 to 162.025 MHz in 25KHz steps
      Output power 2 watts typical(For KP-6299A only)
      Channel bandwidth 25KHz
      Channel step 25KHz
       Modulation modes 5KHz GMSK (AIS,TX AND RX),25KHz AFSK (DSC,RX only)
      Bit rate 9600 b/s +- 50 ppm (GMSK),1200 b/s +- 30 ppm (FSK)
      RX sensitivity Sensitivity – 107dBm 25Khz,Message error rate less than: 2%,Co-channel 10dB,IMD 62dB,Blocking 84dB
