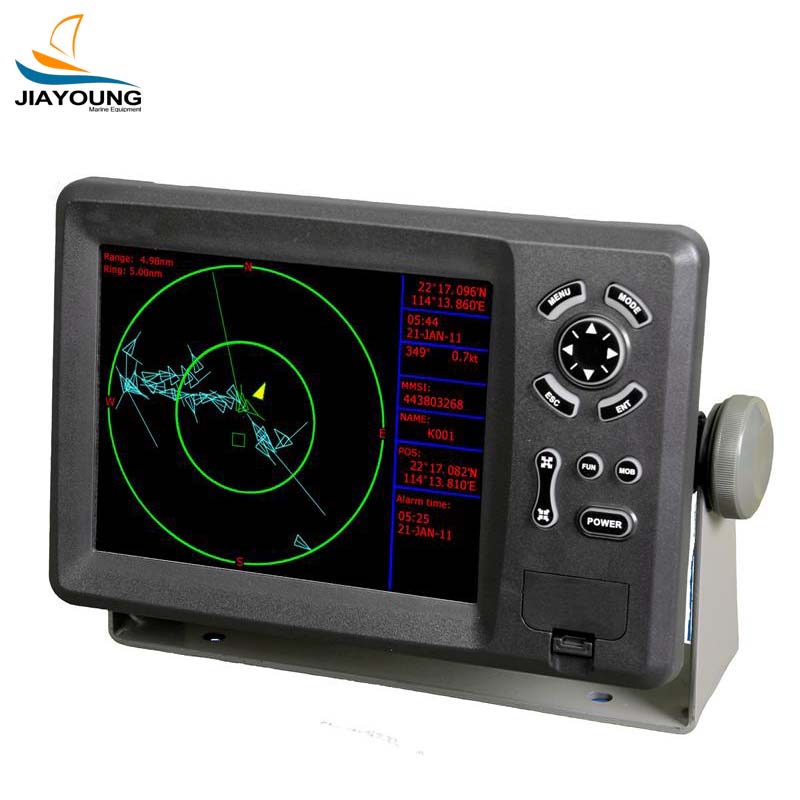

8 Inches Marine GPS AIS Chart Plotter

8 Inches Marine GPS AIS Chart Plotter

Short Description:

Built-in Automatic Identification System (AIS) Class B Transponder High resolution TFT day-view LCD display SD-cards slot for C-Map MAX and user data C-Map MAX and K-Chart Selectable Tide table and Celestial display Versatile display mode include Plotter Screen Nav.Data Satellite Information AIS Display Compass Screen GOTO track navigation Map orientation select Proximity waypoints alarms Perspective View Palette Normal Daylight – exposed to sunlight Night – in dark environment NOAA- paper ch...


  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 1000 Piece/Pieces per Month
  • Port: China Port
  • Payment Terms: L/C,TT,Western Union, Paypal
  • Product Detail

    Product Tags

    Built-in Automatic Identification System (AIS) Class B Transponder

    High resolution TFT day-view LCD display

    SD-cards slot for C-Map MAX and user data

    C-Map MAX and K-Chart Selectable

    Tide table and Celestial display

    Versatile display mode include

    Plotter Screen

    Nav.Data

    Satellite Information

    AIS Display

    Compass Screen

    GOTO track navigation

    Map orientation select

    Proximity waypoints alarms

    Perspective View

    Palette

    Normal

    Daylight – exposed to sunlight

    Night – in dark environment

    NOAA- paper chart color

    Wind speed and direction display by optional sensor input

    AIS guard zone with CPA and TCPA alarm

    PLOTTER CHARACTERISTICS

     Waypoints/icons 15,000 waypoints with name, symbol, 10 proximity waypoint
    Routes waypoint up to 200 points each, plus MOB and Track Navigation or Goto ,Track modes
    Tracks 30,000 point automatic track log; 15 saved track (up to 2000 track points each) let you retrace your path in both directions
    Alarms XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time,
    AIS alarm.
    Pallete Normal,Daylight exposed to sunlight,Night in dark environment,NOAA paper chart colors
    Tides Tide data
    Projection Mercator projection
    Position format Latitude/Longitude
    Base map Built-in Onwa K-Chart
    External Map SD Cards slot for C-Map MAX
    User data storage Internal backup of user settings, or external SD-card
    Plot Interval 1s to 99h or 0.01 nm to 9.99nm
    Plotting scales 0.01nm to 1,000nm
    Nav Data Inputs:
    $–DBT, $–DPT, $–GGA, $–GLL,$–GSA, $–GSV,
    $–HDG,$–HDM,$–HDT,$–MTW, $–RMB,$–RMC,
    $–VTG, $–ZDA, $–VWR,$–VWT,$–MWD, $–VPW
    Outputs:
    $–AAM, $–APB, $–BOD,$–BWC,$–GGA, $–GLL,
    $–RMB,$–RMC,$–VTG, $–XTE, $–ZDA
    Outputs for autopilot:
    $–AAM, $–APB, $–BOD,$–VTG
    Perspective View On/off
    POWER SUPPLY 10.5 to 35VDC, current drain <500mA at 12V
    PHYSICAL
    Size 290mm(H)X195.5mm(W)X99.5mm(D)
    Weight 2.43kg
    Display 8.0-inches Color TFT day-view LCD 800 X 600 pixels
    Waterproofing Display unit: IPX5,Antenna unit: IPX6
    Temperature range Display unit: -15℃ to +55℃,Antenna unit: -25℃ to +70℃
    GPS RECEIVER CHARACTERISTICS
    Receiver 50 parallel channel GPS receiver continuously Tracks and uses up to 50,satellites to compute and update your position
    Acquisition times Cold start: 27 seconds average,Warm start: 27 seconds average,Hot start: 1 seconds average
    Update rate 1/second,continuous
    Accuracy Position: 2.5 meters(95%) without S/A,Velocity: 0.1 Meter/sec without S/A,Time: ±100ns synchronized to GPS time
    Dynamics Altitude: 50,000m Max,Velocity: 500 m/s,Acceleration: 4g Max
    Datum WGS 84 & Others
    Interfaces NMEA 0183 input and output,RS232 and RS422 output
    Antenna KA-07
    EQUIPMENT LIST
    Standard Display unit,Antenna unit with 10m cable,Operator manual,Installation materials and standard spare parts
    AIS CHARACTERISTICS
    Transmitter x 1 (For KP-8299A ONLY)
    Receiver x 2 (one time shared between AIS/DSC)
    Frequency 156.025 to 162.025 MHz in 25KHz steps
    Output power 2 watts typical(For KP-6299A only)
    Channel bandwidth 25KHz
    Channel step 25KHz
    Modulation modes 5KHz GMSK (AIS,TX AND RX),  25KHz AFSK (DSC,RX only)
    Bit rate 9600 b/s +- 50 ppm (GMSK),,1200 b/s +- 30 ppm (FSK)
    RX sensitivity Sensitivity – 107dBm 25Khz,Message error rate less than: 2%,Co-channel 10dB,IMD 62dB,Blocking 84dB
